6MM Cylindrical Ceramic Welding Backing Ceramic Backing Tape

Name: 6MM Cylindrical Ceramic Welding Backing Ceramic Backing Tape
Brand: LJ Ceramic
Price: 1 USD

Quality 6MM Cylindrical Ceramic Welding Backing Ceramic Backing Tape for sale

Place of Origin : Jiangsu, China

Brand Name : LJ Ceramic

Certification : ISO9001:2008/ROHS

MOQ : 2 piece

Price : Negotiation

Packaging Details : Use the export carton which is secure against breakage on the MDF pallet.

Delivery Time : To be negotiated

Payment Terms : L/C ，T/T

Model Number : LX-B6(6MM)

Product Name : Welding ceramic backing

Material : Alumina Ceramic

Feature : High Temperature Resistance

Series : LX-A, LX-B1/B2/B3/B5/B6

Color : White ，Grey

Application : Shipbuilding, bridge, boiler, pressure vessel, steel structure

Processing Service : Moulding

OEM : Accept customization

Contact Now

6MM Cylindrical Ceramic Welding Backing

Product Parameters

Type	Ceramic on self-adhesive aluminium strip
Part no.	LX-B6(6MM)
Length	600 mm
Fastening	On self-adhesive aluminium strip
Colour	Grey
Application	Straight and curved butt and T-joints min. radius of curvature:250 mm
Packaging	Quantity per box:150 pieces Quantity per pallet:12000pieces Weight per box: 12 kg


Type	Ceramic on self-adhesive aluminium strip
Part no	LX-B6(12MM)
Length	600 mm
Fanstening	On sell-adhesive aluminium strip
Colour	Grey
Applcaton	Straight and curved butt and T-joints min. radius of curvature:250 mm
Packaging	Quantity per box:80 pieces Quantity per pallet:6400pieces Weight per box:13 kg

Ceramic material performance index
		Alumina Ceramic			Zirconia Ceramic
Performance	Unit	≧95	≧99	≧99.5
Bulk density	g /cm3	3.7	3.85	3.85	6
Hardness	HRA ≥	86	88	88	92
Flexure strength	Mpa≧	300	350	400	1100
The max.temperature	℃	1500	1500	1500	1450
Linear expansion coefficient	×10-6/℃	7.5	8.2	8.2	10.2
Dielectric constant	εr20℃, 1MHz	9	9.2	9.2	28
Dielectric loss	tanδ×10-4, 1MHz	3	2	2	10
Volume resistivity	Ω·cm 20℃	10^13	10^14	10^14	10^14
Disruptive strength	KV/mm , DC≥	20	20	20	20
Acid resistance	mg/cm2 ≤	0.7	0.7	0.7	2
Alkali resistance	mg/cm2 ≤	0.2	0.1	0.1	0.08
Abrasive resistance	g/cm2 ≤	0.2	0.1	0.1	0.05
Compressive strength	MPa ≥	2500	2500	2500	3000
Rupture strength	MPa ≥	200	350	350	600
Elasticity modulus	GPa	300	350	350	210
Poisson ratio		0.2	0.22	0.22	0.23
Heat conductivity	W/m·K( 20℃)	20	25	25	2.6

6MM Cylindrical Ceramic Welding Backing Ceramic Backing Tape

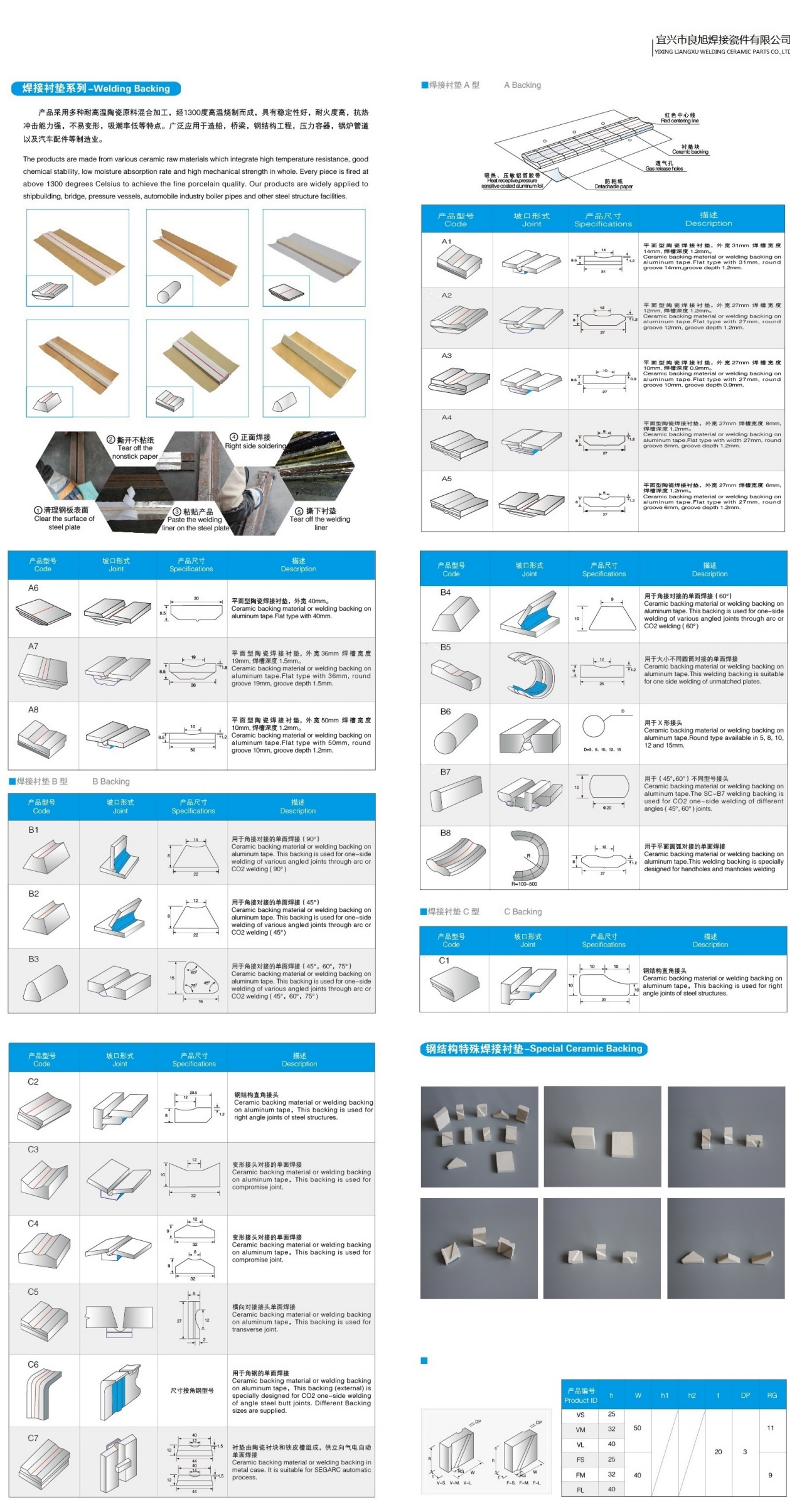

Product List

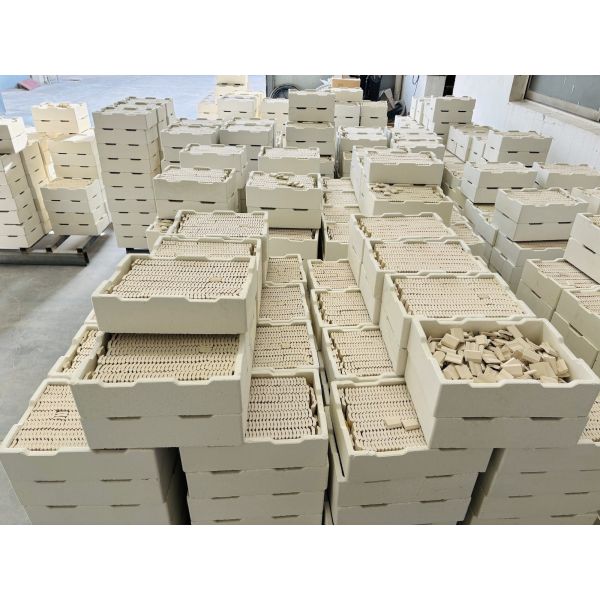

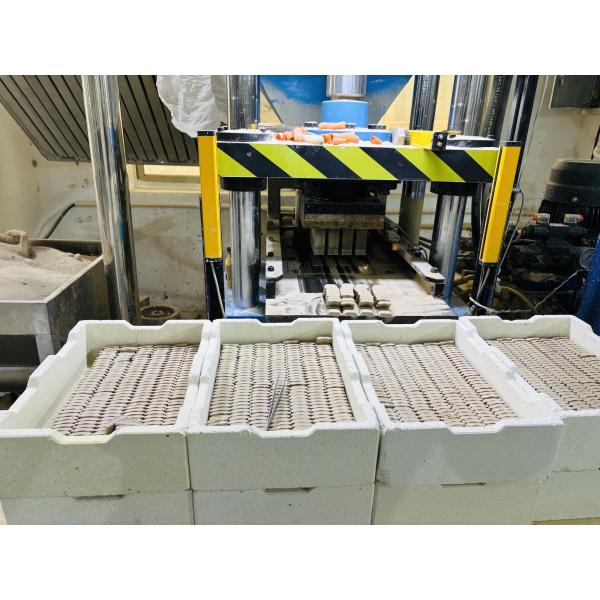

Production Workshop

Applications

Widely applied in Shipbuilding, Bridge Building, Tank & Tube Welding

Packing and shipping

6MM Cylindrical Ceramic Welding Backing Ceramic Backing Tape

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
